The APC AR106V NetShelter is a 6U, low-profile, wall-mountable rack enclosure designed for deploying servers and networking equipment in edge computing environments where floor space is limited. It is specifically built to accommodate deeper equipment (up to 30 inches) in a compact form factor that extends only about 13 inches from the wall.
Description
The AR106V cabinet is an efficient and secure solution for non-IT environments like retail, healthcare, and light industrial spaces. Key features include:
- Space-Saving Design: Its low-profile form factor allows for the vertical mounting of standard 19″ rack equipment, including 1U and 2U hyperconverged servers and UPS units, while minimizing protrusion from the wall.
- Versatile Installation: The enclosure can be wall-mounted using a detachable bracket or converted into a floor-standing unit with optional casters (sold separately).
- Environmental Protection: It includes an integrated fan module (120V) and a replaceable MERV 5/G3 dust filter to allow safe deployment in dusty industrial environments.
- Ease of Deployment: The unit ships fully assembled and uses shock packaging, allowing optional equipment to be pre-integrated and shipped together to speed up on-site installation.
- Security & Management: The cabinet features keylock doors and is compatible with APC NetBotz physical and environmental security systems for remote monitoring and enhanced security (sold separately).
Specifications
| Feature | Specification | Source |
|---|---|---|
| Rack Units | 6U (4U available after installing a 2U Smart-UPS) | |
| Mounting Type | Wall Mountable (or floor standing with optional casters) | |
| Rack Width | 19″ EIA-310 vendor-neutral mounting compatibility | |
| Max. Mounting Depth | 30 in (762 mm) | |
| Static Weight Capacity | 250 lbs (113 kg) | |
| Dimensions (HxWxD) | 25.5″ H x 38.1″ W x 13.9″ D (648 x 968 x 353 mm) | |
| Net Weight | Approx. 80 lbs (36.3 kg) | |
| Color | Black | |

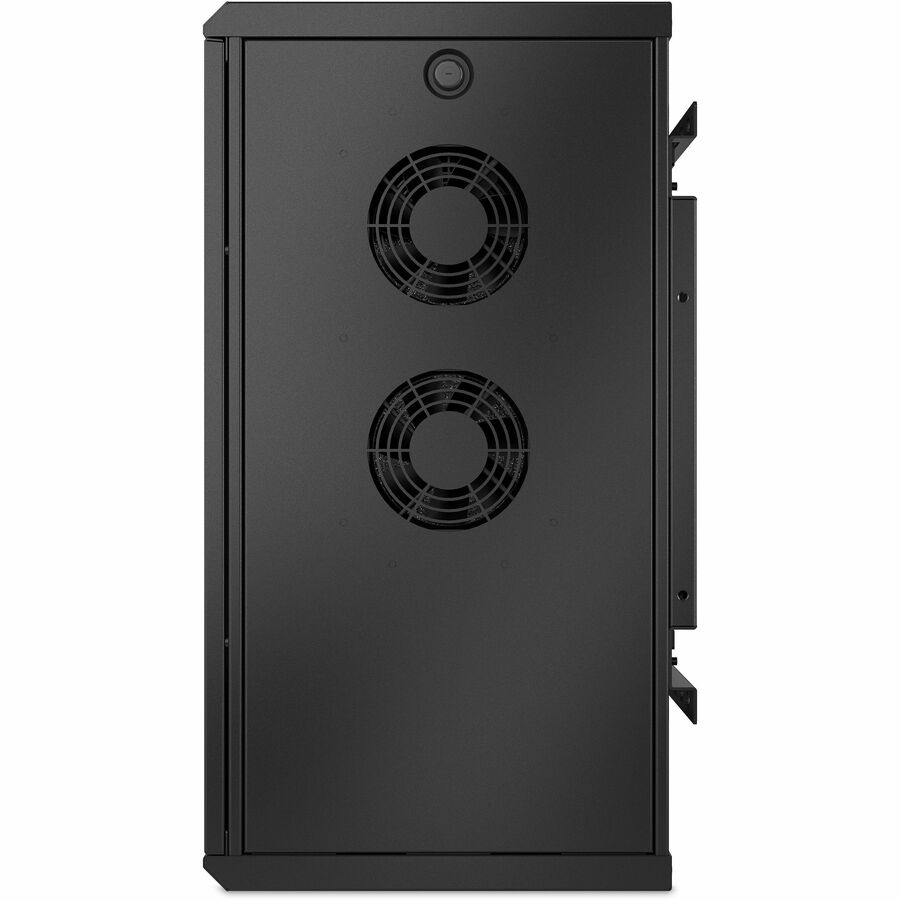

| Cooling System | Two integrated 120V fans and MERV 5/G3 dust filter | |
| Input Power Connector | IEC 60320 C13 (for internal power distribution, not main power) | |
| Warranty | 5-year repair or replace warranty |
UPC: 731304402022
